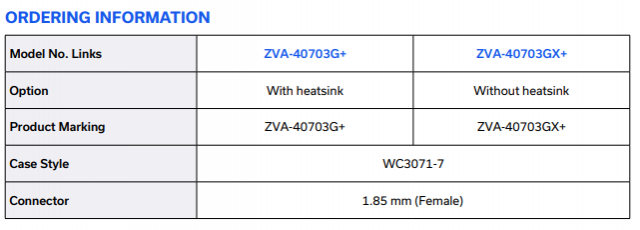

ZVA-40703G+/ZVA-40703GX+
Medium Power Amplifier
50Ω 40 to 70 GHz PSAT +24 dBm 1.85mm Female
• Exceptionally High Frequency
• Flat Gain Response, ±2.5 dB
• High PSAT, +24 dBm Typ.
• Wide DC Operating Voltage, +10 To +15 V
• Over Voltage and Reverse Voltage Protected
APPLICATIONS
• 5G-FR2 Millimeter Wave Testing
• Aerospace & Defense
• Test and Measurement
• Broadband Telecom
• Q- and V-Band SATCOM
• IEEE 802.11.ad WiGig
ZVA-543LN+/ZVA-543LNX+
Low Noise Amplifier
50Ω 20 to 54 GHz NF 3.5 dB 1.85mm Female
• High Gain, 40 dB Typ. Over The Entire Operating Band
• Low Noise Figure, 3.5 dB Typ.
• High PSAT, +29 dBm Typ.
• Wide DC Operating Voltage, +10 To +15 V
• Over Voltage and Reverse Voltage Protected
APPLICATIONS
• Wideband Test and Instrumentation
• SATCOM
• 5G FR2 Millimeter Wave Testing
• Aerospace and Defense
ZFDC-6-23-S+
Directional Coupler
50Ω 20 to 2000 MHz
• Very wideband, 20 to 2000 MHz
• Good directivity, 17 dB typ.
• Can be used for unbalance 2 way splitter
• Rugged shielded case
APPLICATIONS
• Cellular
• Instrumentation
• Communication receivers & transmitters
• GPS
EDAT-67G-30
Programmable Attenuator
50Ω 0.01 to 67 GHz 0 to 31.5 dB 0.5 dB step 1.85 mm female
• Super wide bandwidth, solid-state design
• High power handling (+26 dBm CW)
• Daisy-chain control of up to 25 units
• USB control and automation
• Display of attenuation state on unit.
APPLICATIONS
• Test & measurement equipment / systems
• 5G FR1 & FR2, WiGig, millimeter wave radio infrastructure
• Communications, Radar, EW, and ECM defense systems
• Satellite communications up to V band
