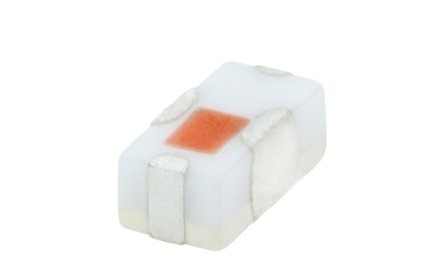

LFCW-332+
Low Pass Filter
50Ω 10 to 3300 MHz
• Very good rejection, 30 dB typical
• Rugged, ceramic construction
• Good power handling, 2W
• Miniature size 0603 (0.063"[1.6mm] x 0.031"[0.8mm] x 0.024"[0.6mm])
• Replaces one inductor and three capacitors
• Low cost
• Aqueous washable
Applications
• ISM Band
• WLAN
• Bluetooth
• 5G sub 6GHz

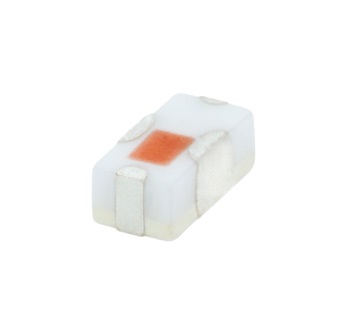

LFCW-612+
Low Pass Filter
50Ω 10 to 6100 MHz
• Very good rejection, 36 dB typical
• Rugged, ceramic construction
• Tiny size, 0.063" x 0.032" x 0.024" (0603)
• Good power handling
• Low cost
• Aqueous washable
Applications
• ISM Band
• WLAN
• Bluetooth
• 5G sub 6GHz

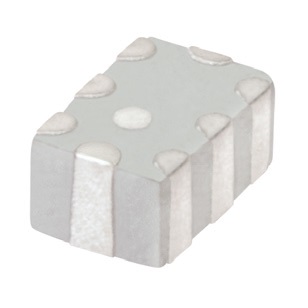

BFCG-252+
Bandpass Filter
50Ω 2400 to 2500 MHz
• Rugged, ceramic construction
• Good power handling
• Miniature size 0805 (0.079"[2.0mm] x 0.049"[1.25mm] x 0.037"[0.95mm])
• High rejection
• Low cost
• Aqueous washable
Applications
• ISM Band
• WLAN
• Bluetooth
• Zigbee
BFCW-252+
Bandpass Filter
50Ω 2400 to 2500 MHz
• Very good rejection, 30 dB typical
• Rugged, ceramic construction
• Tiny size, 0.063" x 0.032" x 0.024" (0603)
• High Rejection
• Miniature size 0603
• Low cost
• Aqueous washable
Applications
• ISM Band
• WLAN
• Bluetooth
• Zigbee

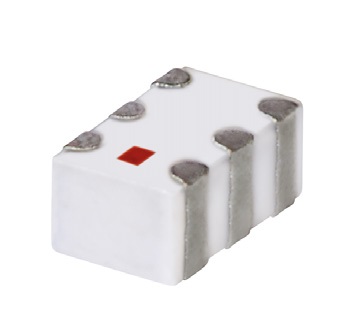

BBFCG2-532+
Bandpass Filter & Balun
50Ω 5000 to 5700 MHz
• Compact design includes Balun & Filter in one package
• Low cost
• Small size (0.079”x0.049”x0.037”)
• Temperature stable
• Hermetically sealed
Applications at 25°C
• ISM Band
• Bluetooth
• Zigbee
• WiFi / WLAN
