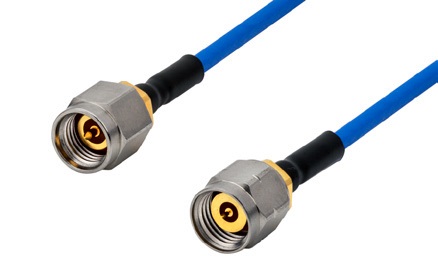

FL86-12KMVM+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 1.6 dB typ. at 40 GHz
• Excellent Return Loss, 21 dB typ. to 40 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems

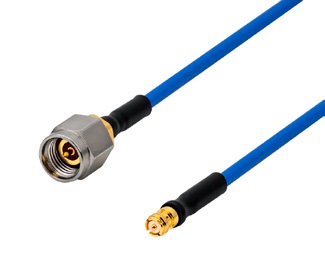

FL86-12SMP+
Coaxial Cable
50Ω 12 inch DC to 26.5 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 26.5 GHz
• Low Loss, 1.45 dB typ. at 26.5 GHz
• Excellent Return Loss, 18 dB typ. at 26.5 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems
FL86-12SMPKM+
Coaxial Cable
50Ω 12 inch DC to 33 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 33 GHz
• Low Loss, 1.46 dB typ. at 33 GHz
• Excellent Return Loss, 20 dB typ. at 33 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems
FL86-12SMPVM+
Coaxial Cable
50Ω 12 inch DC to 33 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 33 GHz
• Low Loss, 1.45 dB typ. at 33 GHz
• Excellent Return Loss, 18 dB typ. at 33 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems
FL86-12SSMP+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 1.86 dB typ. at 40 GHz
• Excellent Return Loss, 21 dB typ. at 40 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems
FL86-12SSMPKM+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 1.79 dB typ. at 40 GHz
• Excellent Return Loss, 26 dB typ. at 40 GHz
• 6 mm bend radius for tight installations, 6 mm static bend, 20 mm dynamic bend
• Insulated outer jacket standard
• Connector interface, meets MIL-STD-348
• Ideal for interconnect of assembled systems
