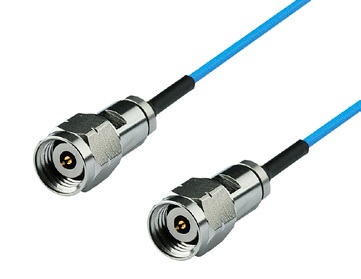

FL47-12KM+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Tight Bend Radius, 5mm static bend, 10mm dynamic
• Ideal for interconnect of sub-assembly systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 2.7 dB typ. at 40 GHz
• Excellent Return Loss, 24 dB typ. at 40 GHz
• Insulated outer jacket standard
• Connector interface, meets IEEE STD 287-2007 standard
FL47-12KMVM+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Tight Bend Radius, 5mm static bend, 10mm dynamic
• Ideal for interconnect of sub-assembly systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 2.8 dB typ. at 40 GHz
• Excellent Return Loss, 26 dB typ. at 40 GHz
• Insulated outer jacket standard
• Connector interface, meets IEEE STD 287-2007 standard
FL47-12SSMP+
Coaxial Cable
50Ω DC to 40 GHz
• Flexible
• Tight Bend Radius, 5mm static bend, 10mm dynamic
• Ideal for interconnect of sub-assembly systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 2.7 dB typ. at 40 GHz
• Excellent Return Loss, 20 dB typ.
• Insulated outer jacket standard
• Connector interface, meets IEEE STD 287-2007 standard
FL47-12SSMPKM+
Coaxial Cable
50Ω 12 inch DC to 40 GHz
• Flexible
• Tight Bend Radius, 5mm static bend, 10mm dynamic
• Ideal for interconnect of sub-assembly systems
• Wideband frequency coverage, DC to 40 GHz
• Low Loss, 2.7 dB typ. at 40 GHz
• Excellent Return Loss, 24 dB typ. at 40 GHz
• Insulated outer jacket standard
• Connector interface, meets IEEE STD 287-2007 standard
FL47-12VM+
Coaxial Cable
50Ω 12 inch DC to 50 GHz
• Flexible
• Tight Bend Radius, 5mm static bend, 10mm dynamic
• Ideal for interconnect of sub-assembly systems
• Wideband frequency coverage, DC to 50 GHz
• Low Loss, 3.2 dB typ. at 50 GHz
• Excellent Return Loss, 20 dB typ.
• Insulated outer jacket standard
• Connector interface, meets IEEE STD 287-2007 standard
