專題文章 : 2020年1月份Mini-Circuits新產品發佈-Power Splitters

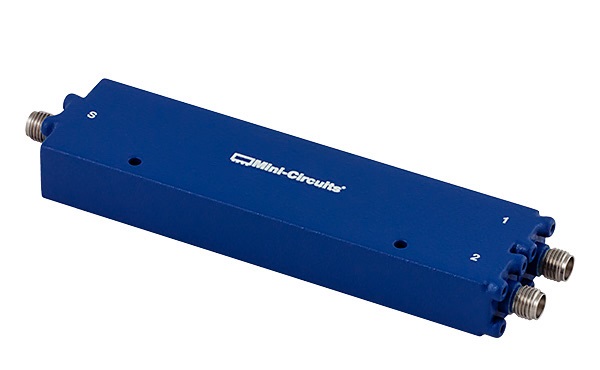

ZC2PD-V154+
Power Splitter/Combiner
2 Way-0° 50Ω 1000 to 50000 MHz
• Super wideband, 1 to 50 GHz
• Low insertion loss, 1.9 dB typ.
• High Isolation, 32 dB typ.
• 16W power handling
• Low amplitude unbalance, 0.1 dB typ.
• Excellent VSWR, 1.1:1 typ.
ZC2PD-V254+
Power Splitter/Combiner
2 Way-0° 50Ω 2000 to 50000 MHz
• Super wideband, 2 to 50 GHz
• Low insertion loss, 1.0 dB typ.
• High Isolation, 25 dB typ.
• 16W power handling
• Low amplitude unbalance, 0.1 dB typ.
• Excellent VSWR, 1.1:1 typ.
ZC2PD-E1653+
Power Splitter/Combiner
2 Way-0° 50Ω 1000 to 65000 MHz
• Super wideband, 1 to 65 GHz
• Low insertion loss, 1.8 dB typ.
• High Isolation, 32 dB typ.
• 16W power handling
• Low amplitude unbalance, 0.1 dB typ.
• Excellent VSWR, 1.12:1 typ.
