141-2SMR+
Coaxial Cable
50Ω 2 inch DC to 18 GHz
• Tight Bend Radius
• Right Angle SMA Connectors
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 18 GHz
• Low Loss, 0.14 dB typ. at 18 GHz
• Excellent Return Loss, 25 dB typ. at 18 GHz
• Hand formable to almost any custom shape without special bending tools
• 8mm bend radius for tight installations
• Anti-torque nut prevents cable stress during installation
• Insulated outer jacket standard
141-2SMRC+
Coaxial Cable
50Ω 2 inch DC to 18 GHz
• Tight Bend Radius
• Right Angle SMA Connectors, 180° rotated
• Ideal for interconnect of assembled systems
• Wideband frequency coverage, DC to 18 GHz
• Low Loss, 0.21 dB typ. at 18 GHz
• Excellent Return Loss, 24 dB typ. at 18 GHz
• Hand formable to almost any custom shape without special bending tools
• 8mm bend radius for tight installations
• Anti-torque nut prevents cable stress during installation
• Insulated outer jacket standard

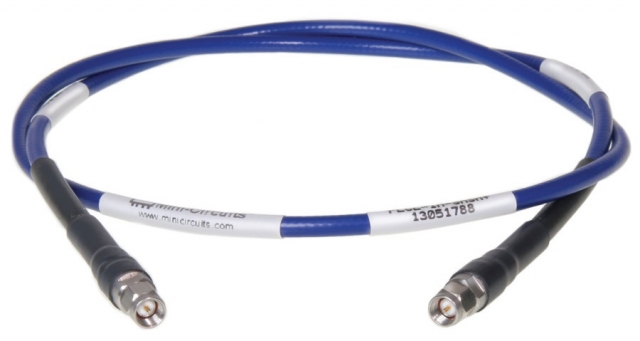

FLC-1FT-SMSM+
Flexible Test Cable
50Ω 1FT DC to 26 GHz
• Ultra-wideband, DC to 26 GHz
• Minimal performance change versus flexure
• Low loss
• Low insertion loss, 1.1 dB at 26 GHz
• Rugged construction includes protective shield and strain relief for longer life
• Stainless steel connectors for long mating-cycle life
• Extra flexible
SYBP-675+
Bandpass Filter
50Ω 500 to 850 MHz
• Small size (0.25" X 0.31" X 0.15")
• High power handling, 4 W
• Low insertion loss, 1.8 dB typ.
• Temperature stable
SYBP-1275+
Bandpass Filter
50Ω 1100 to 1450 MHz
• Small size (0.25" X 0.31" X 0.15")
• High power handling, 8 W
• Low insertion loss, 1.6 dB typ.
• Temperature stable
SYBP-1950+
Bandpass Filter
50Ω 1700 to 2200 MHz
• Small size (0.25" X 0.31" X 0.15")
• Excellent power handling, 10 W
• Low insertion loss, 1.2 dB typ.
• Temperature stable
