DVGA3-122+

Digital Controlled Variable Gain Amplifier

50Ω 0.9 to 1.2 GHz

31.5 dB, 0.5 dB Step, 6 Bit Serial Control

• Integrated Amplifier, Reflectionless Filter and Digital Attenuator

• 20 dB Gain / 31.5 dB Gain Control

• Flat frequency response, ±0.85 dB (0.9-1.2 GHz)

• Gain, 20 dB typ. at 1 GHz

• Serial control interface

• Small size 5.0 x 5.0 mm

ZABDC50-51HP+

Bi-Directional Coupler

50Ω Up to 100W 1 to 50 MHz

• High directivity, 25 dB typ.

• Excellent VSWR, 1.07:1 typ.

• High power, up to 100W

• Extremely low insertion loss, 0.05 dB typ.

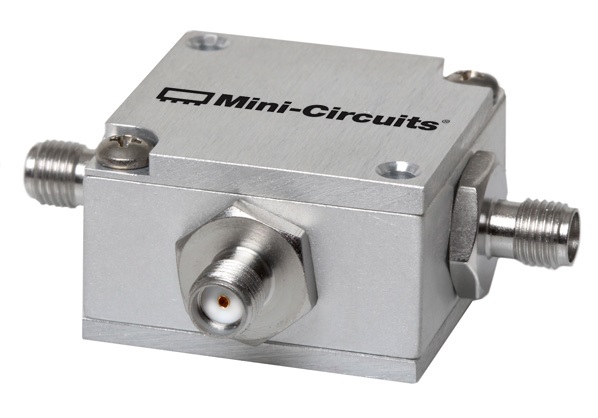

ZCDP-1710-S+

Diplexer

50Ω 1176, 1590 MHz

• Low insertion loss

• High rejection

• Good return loss

• Connectorized package

• 50Ω impedance

ANNEQ-50K+

Termination Quick-Turn

50Ω DC to 40 GHz

• Ultra-wideband, DC to 40 GHz

• Quick-Turn, 1 turn

• Mates with SMA, K, and 3.5mm connector types

• Wideband coverage, DC to 40 GHz

• Return loss, 27 dB typ. up to 18 GHz and 27 dB typ. up to 40 GHz

• Rugged construction

• 2.92 mm connector mates with SMA, K, and 3.5mm connectors

SBTX2-113-2W+

RF Transformer

50Ω 2.6 to 11.0 GHz

• Super wideband, 2.6 to 11.0 GHz

• Low insertion loss, 1.4 dB typ.

• Amplitude Unbalance, ±0.9 dB typ.

• Low phase unbalance, ±6˚ typ.

• Common mode rejection, 22 dB typ.

• Unbalanced to balanced transformer

• Excellent amplitude and phase unbalance

• Aqueous washable

MTY2-243+

RF Transformer

50Ω 10 to 24 GHz

• Wideband, 10 to 24 GHz

• Low insertion loss, 1.0 dB typ. to 20 GHz

• Low unbalance, 0.7 dB, 6°

• Power handling up to +31 dBm

• Low phase unbalance, 6 deg. and amplitude unbalance, 0.7 dB typ.

• Miniature size, (2 x 2 x 1 mm)

• Low cost

• Aqueous washable
