ZCDC13-V154+

Directional Coupler

50Ω 13dB Up to 13W 1 to 50 GHz

• Wideband, 1 to 50 GHz

• Excellent Coupling Flatness, ±0.6 dB typ.

• Power Handling up to 13W

• Good directivity, 18 dB typ. up to 50 GHz

• Excellent return loss, 22 dB typ. up to 50 GHz

• DC current pass through input to output

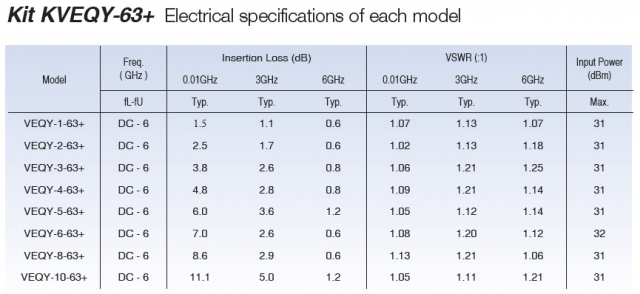

KVEQY-63+

GAIN EQUALIZERS Designer’s Kit

DC to 6GHz

• Wideband, 50Ω

• Input power 31dBm max.

• 1 to 10dB attenuation slope

• SMA Male and Female connectors

• Rugged Unibody construction

• Length less than 1.5”

• Low cost

BBP-101+

Bandpass Filter

50Ω 94 to 108 MHz

• Narrow bandwidth

• Flat group delay over passband

• Good VSWR, 1.2:1 typical in passband

• High rejection, 60 dB typ

• Rugged shielded case

• Connectorized package

• Fast roll-off

BBP-140+

Bandpass Filter

50Ω 130 to 150 MHz

• High rejection, 50 dB typ.

• Good VSWR, 1.3:1 typ.

• Fast roll-off

• Narrow bandwidth

• Connectorized package

• Rugged shielded case
