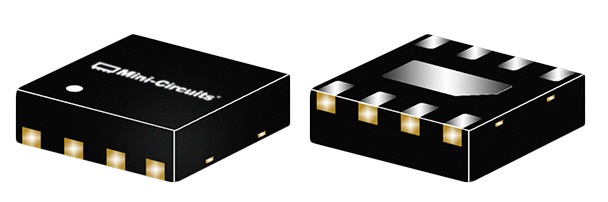

PMA3-83LNW+

Monolithic Amplifier

50Ω 0.4 to 8.0 GHz

• Flat gain over wideband, 0.4 to 8 GHz

• Low noise figure, 1.2 dB

• High IP3, up to +37 dBm

• Low Noise figure, 1.2 dB at 2 GHz

• High IP3, 37 dBm typ. at 2 GHz

• High Pout, P1dB 21.7 dBm typ. at 2 GHz and 6V

• Excellent Gain flatness, ±0.6 dB over 0.4 to 7 GHz and 6V

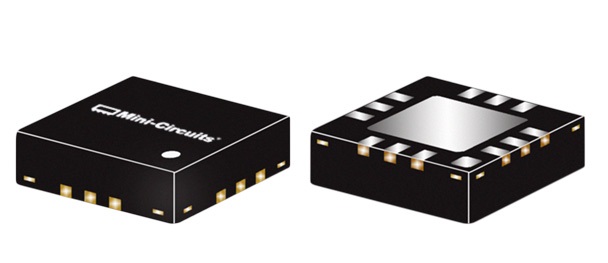

PMA2-123LN5+

Monolithic Amplifier

50Ω 0.5 to 12 GHz

• Ultra wideband, 0.5 to 12 GHz

• Excellent noise figure, 1.8 dB at 12 GHz

• Low Current, 30mA

• Usable up to 18 GHz

• Ultra wideband, 0.5 to 12 GHz

• Excellent Noise figure, 1.8 dB at 12 GHz

• Low current, 30mA

• Usable to 18 GHz

CPJC-6-252R+

LTCC Coupler

50Ω 2400 to 2500 MHz 6dB Coupling

• Miniature size 0603

• Low cost

• Aqueous washable

CPJC-17-252R+

Ceramic Coupler

50Ω 2400 to 2500 MHz 17dB Coupling

• Miniature size 0603 (0.063"[1.6mm] x 0.031" [0.8mm] x 0.024"[0.6mm])

• Low cost

• Aqueous washable

CPJC-21-252R+

LTCC Coupler

50Ω 2400 to 2500 MHz 21dB Coupling

• Miniature size 0603 (0.063”[1.6mm]) x 0.031”[0.8mm] x 0.024”[0.6mm])

• Low cost

• Aqueous washable

CPJC-28-252R+

LTCC Coupler

50Ω 2400 to 2500 MHz 28dB Coupling

• Miniature size 0603 (0.063”[1.6mm]) x 0.031”[0.8mm] x 0.024”[0.6mm])

• Low cost

• Aqueous washable
