185F-KF+
Adapter 1.85 mm-F to 2.92 mm-F
50Ω DC to 40 GHz
• Ultra-wideband, DC-40 GHz
• Flat response
• Low insertion loss, 0.13 dB
• Excellent VSWR, 1.05 typ.
• Low cost adapters, available from stock
• Stainless steel body, passivated
185F-KM+
Adapter 1.85 mm-F to 2.92 mm-M
50Ω DC to 40 GHz
• Ultra-wideband, DC-40 GHz
• Flat response
• Low insertion loss, 0.11 dB
• Excellent VSWR, 1.04 typ.
• Low cost adapters, available from stock
• Stainless steel body, passivated
185M-KF+
Adapter 1.85 mm-M to 2.92 mm-F
50Ω DC to 40 GHz
• Ultra-wideband, DC-40 GHz
• Flat response
• Low insertion loss, 0.12 dB
• Excellent VSWR, 1.04 typ.
• Low cost adapters, available from stock
• Stainless steel body, passivated
185M-KM+
Adapter 1.85 mm-M to 2.92 mm-M
50Ω DC to 40 GHz
• Ultra-wideband, DC-40 GHz
• Flat response
• Low insertion loss, 0.10 dB
• Excellent VSWR, 1.03 typ.
• Low cost adapters, available from stock
• Stainless steel body, passivated

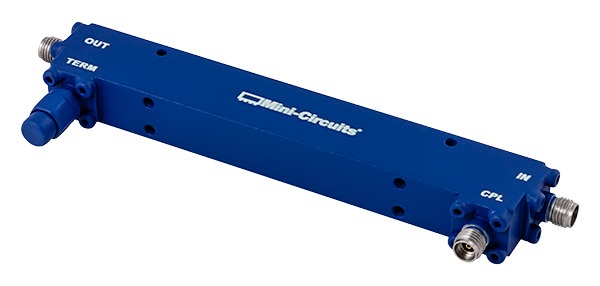

ZCDC16-K5R44W+
Directional Coupler
50Ω 16dB Up to 20W 0.5 to 40 GHz
• Wideband, 0.5 to 40 GHz
• Excellent Coupling Flatness, ±1.1 dB typ.
• Power Handling up to 20W
• Good directivity, 13 dB typ. up to 40 GHz
• Good return loss, 14 dB typ. up to 40 GHz
• DC current pass through input to output
ZCDC16-K0244+
Directional Coupler
50Ω 16dB Up to 20W 2 to 40 GHz
• Wideband, 2 to 40 GHz
• Excellent Coupling Flatness, ±0.5 dB typ.
• Power Handling up to 20W
• Good directivity, 14 dB typ. up to 40 GHz
• Good return loss, 17 dB typ. up to 40 GHz
• DC current pass through input to output
