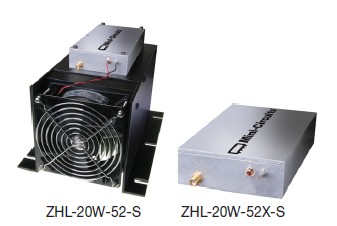

ZHL-20W-52

High Power Amplifier

50Ω 20W 70 to 500 MHz

• Excellent Flatness, ±0.7 dB typ.

• High Output Power, 20W typ.

• High Gain, 50 dB typ.

• High Directivity, 25 dB typ.

• High Output IP3, 53 dBm typ.

• Class A amplifier

• No damage with an open or short output load under full CW output power

• Shuts off when base plate temperature exceeds +100°C

• Over voltage protection

• Reverse Polarity Protected

• Unconditionally stable

• Protected by US patent 7,348,854

GALI-S66-D+

Monolithic Amplifier Die

50Ω DC to 3 GHz

• Low Noise Figure, 2.4 dB typ.

• High Gain, 18.2 dB typ. at 2 GHz

• Excellent Return Loss, 20 dB typ.

• Internally Matched to 50 Ohms

• Frequency range, DC to 3 GHz

Quantity, Package                       Model No.

Small, Gel - Pak: 5,10,50,100 KGD*            GALI-S66-DG+

Medium†, Partial wafer: KGD*<2805        GALI-S66-DP+

Large†, Full Wafer                                        GALI-S66-DF+

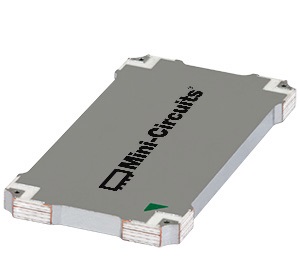

BDCH-25-33+

Bi-Directional Coupler

50Ω 25dB Coupling 150W 800 to 3000 MHz

• High power handling, up to 150W

• Ultra wideband, 800 to 3000 MHz

• Low insertion loss, 0.2 dB

• High directivity, 28 Db

• DC current pass through input to output

ZX75BP-4700-S+

Bandpass Filter

50Ω 4400 to 5000 MHz

• Low insertion loss

• High selectivity

• Connectorized package

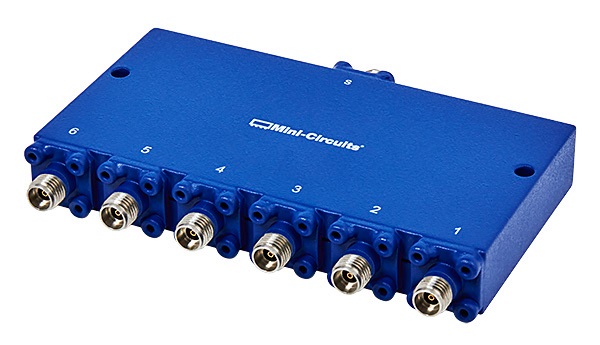

ZC6PD-K1844+

Power Splitter/Combiner

6 Way-0° 50Ω 18000 to 40000 MHz

• Super wideband, 18 to 40 GHz

• Low insertion loss, 1.6 dB typ.

• High Isolation, 25 dB typ.

• 20W power handling

• Low amplitude unbalance, 0.35 dB typ.

• Low phase unbalance, 6.2 deg. typ.

• DC Pass from sum port to all output ports

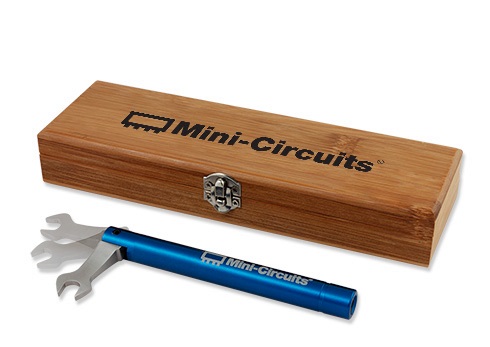

TRQ-516-08

Torque Wrench

• Lab quality

• Accuracy

• Precise preset torque

• Prevent over or under tightening

• Light weight, easy to use

• SMA, 3.5mm, 2.92mm, 2.4mm,1.85mm connectors
