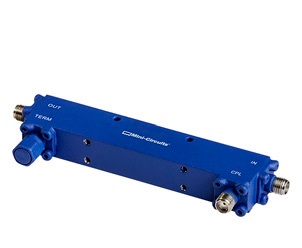

ZCDC10-01263-S+

Directional Coupler

50Ω 10dB Up to 20W 1 to 26.5 GHz

• Excellent Coupling Flatness, ±0.4 dB typ.

• Power Handling up to 20W

• Wide frequency range, 1 to 26.5 GHz

• Good directivity, 16 dB typ. up to 26.5 GHz

• Good return loss, 19 dB typ. up to 26.5 GHz

• DC current pass through input to output

SYBDC-15-13HP+

Bi-Directional Coupler

50Ω 15 dB Coupling 100 to 1000 MHz 10 Watt

• High power handling, 10W

• Full decade bandwidth

• Low mainline loss, 0.75 dB

• High directivity, 23 dB

• Excellent VSWR, 1.15:1

• Wideband frequency, 100-1000 MHz

ZC4PD-K1844+

Power Splitter/Combiner

4 Way-0° 50Ω 18000 to 40000 MHz

• Super wideband, 18 to 40 GHz

• Low insertion loss, 1.2 dB typ.

• High Isolation, 27 dB typ.

• 20W power handling

• Low amplitude unbalance, 0.12 dB typ.

• Excellent VSWR, 1.15:1 typ.

ZC3PD-18263-S+

Power Splitter/Combiner

3 Way-0° 50Ω 18 to 26.5 GHz

• Super wideband, 18 to 26.5 GHz

• Low insertion loss, 0.9 dB typ.

• High Isolation, 35 dB typ.

• 20W power handling

• Low amplitude unbalance, 0.17 dB typ.

• Excellent VSWR, 1.09 dB typ.

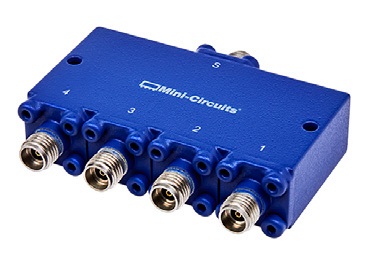

ZC4PD-06263-S+

Power Splitter/Combiner

4 Way-0° 50Ω 6000 to 26500 MHz

• Super wideband, 6 to 26.5 GHz

• Low insertion loss, 1.5 dB typ.

• High Isolation, 26 dB typ.

• 20W power handling

• Low amplitude unbalance, 0.13 dB typ.

• Excellent VSWR, 1.2:1 typ.

ZC4PD-K0644+

Power Splitter/Combiner

4 Way-0° 50Ω 6000 to 40000 MHz

• Super wideband, 6 to 40 GHz

• Low insertion loss, 1.5 dB typ.

• High Isolation, 26 dB typ.

• 20W power handling

• Low amplitude unbalance, 0.13 dB typ.

• Excellent VSWR, 1.19:1 typ.
