AVA-0233LN-D+ Monolithic Amplifier Die 50Ω 2 to 30GHz • Super Wideband & Flat Gain, 16.8+/-0.3dB @2 to 30GHz • Outstanding Match for Signal Chain Integration, >15dB • Low Noise Figure (NF<2dB), and High OIP3 ( OIP3 >26dBm at Mid Band) • Potential Replacement for HMC7950a,b APPLICATIONS • Test & Instrument • Military & Space • Fixed Satellite • Mobile Quantity, Package Model No. Small, Gel - Pak: 5,10,50,100 KGD* AVA-0233LN-DG+ Medium†, Partial wafer: KGD*<464 AVA-0233LN-DP+ Full Wafer AVA-0233LN-DF+

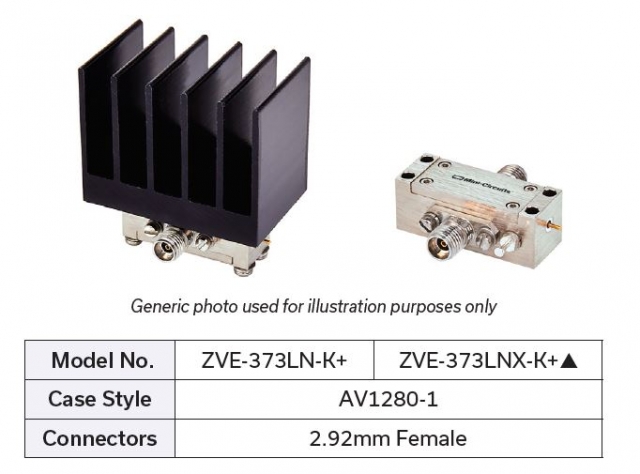

ZVE-373LN-K+/ZVE-373LNX-K+ Wideband Amplifier 50Ω 28 to 37 GHz • Extremely wideband, 28 to 37 GHz • Flat Gain, 20±1.5 dB typ. • High OIP3, +20 dBm typ. • +9 dBm Pout typ. APPLICATIONS • Radar and military • 5G mmW • KA band satellite repeaters
RC4DAT-8G-120H Programmable Attenuator 50Ω 0 – 120 dB, 0.05 dB step 200 to 8000 MHz • Four independently programmable channels • Wide attenuation range, 120 dB • Supports U-NII bands 5-8 (5.925 to 7.125 GHz) • Fine attenuation resolution, 0.05 dB • Daisy-chain control of up to 25 attenuators Applications • Wi-Fi 6E MIMO development • LTE / 5G / IoT / Bluetooth / Zigbee • Cellular handover testing • C-band radar / satcom testing • Automated signal sweeping / fading
ZUDC30-83-S+ Directional Coupler 50Ω 30dB Up to 50W 0.3 to 8 GHz • Ultra-Wideband, 0.3 to 8 GHz • Excellent coupling flatness, ±0.7 dB • Low mainline loss, 0.4 dB • Good directivity, 29 dB typ. • High power handling, up to 50W APPLICATIONS • Test and measurement • Cellular/GSM/PCS • ISM • Extended WiFi (7.25 GHz) • Zigbee • Bluetooth
|
