ERA-51SM-D+ Monolithic Amplifier Die 50Ω DC to 4 GHz • Single Voltage Supply • High Linearity • Transient protected, US patent 6,943,629 • DC-4 GHz • Internally Matched to 50 Ohms • Low Performance Variation Over Temperature Applications • Cellular/ PCS/ 3G Base Station • CATV, Cable Modem & DBS • Fixed Wireless & WLAN • Microwave Radio & Test Equipment Quantity, Package Model No. Small, Gel - Pak: 5,10,50,100 KGD* ERA-51SM-DG+ Medium†, Partial wafer: KGD*<3024 ERA-51SM-DP+ Large†, Full Wafer ERA-51SM-DF+
RDC-20-232-75X+ Directional Coupler 75Ω 20dB 5 to 2350 MHz • Wideband 5-2350 MHz • Low mainline loss, 0.8 dB typ. at 1800 MHz • Good Dirctivity, 16 dB typ. at 1800 MHz • Excellent Return Loss, 27 dB typ. • Supports DOCSIS® 3.1 Systems • Aqueous washable Applications • DOCSIS 3.1 • Cable tv

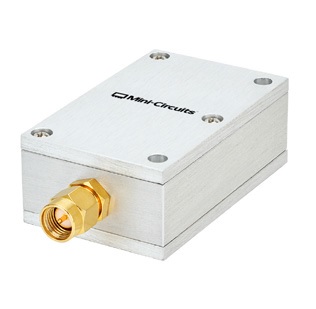

ZCBS4-738-S+ Band Stop Filter 50Ω 718 to 758 MHz • Passbands up to 6 GHz • Fractional bandwidth from <1 to 25% • Excellent temperature stability • Rugged construction to handle demanding environmental conditions • Low insertion loss, 1.7 dB typ. • Fast roll-off • Connectorized package Applications • Satellite communication • Test and measurement
MLPA-2300+ Low Pass Filter 50Ω DC to 2300 MHz • Gross-leak-sealed package • Resistant to vibration • Can modify for Hermeticity • Low passband IL , 2.0 dB typ. • Fast Rejection roll-off • Excellent rejection floor, 70 dB typ. • Wider stopband performance up to 6GHz • Good Return loss, 12.7 dB typ. Applications • Test and measurement • Harmonic rejection • Transmitters/Receivers
MDB-54H+ Wideband Double Balanced Mixer Level 15 (LO Power 15dBm) 20-50 GHz • Super wideband RF & LO, 20-50 GHz • Super wideband IF, DC-20 GHz • High L-R Isolation, 45 dB typ. • Excellent Input IP3, 20 dBm Typ. • Usable as Up & Down Converter Typical Applications • Satellite up and down converters • Defense radar & communication • WiGig • 5G • ISM
|
