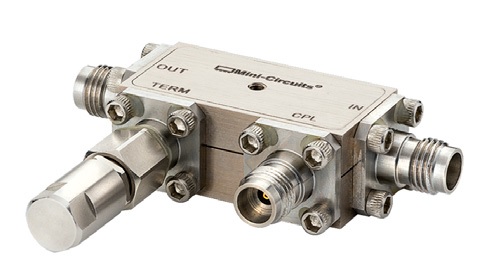

ZCDC20-E40653+ Directional Coupler 50Ω 20dB Up to 12W 40 to 65 GHz • Wideband, 40 to 65 GHz • Power Handling up to 12W • Excellent coupling flatness, ±0.6 dB typ. up to 65 GHz • Good directivity, 15 dB typ. up to 65 GHz • Excellent in/out return loss, 18 dB typ. up to 65 GHz • DC current pass through input to output Applications • 5G • Mobile • Fixed satellite • Lab use
ZCDC20-V2654+ Directional Coupler 50Ω 20dB Up to 16W 26 to 50 GHz • Power Handling up to 16W • Wide frequency range, 26 to 50 GHz • Good coupling flatness, ±0.4 dB typ. • Good directivity, 16 dB typ. up to 50 GHz • Good return loss, 13 dB typ. up to 50 GHz • DC current pass through input to output Applications • 5G • Mobile • Fixed satellite • Lab use
SCPJ-2-30W-32+ High Power Splitter 2 Way-180° 50Ω 110 to 330 MHz 30 Watt • High power handling, 30W as a splitter • High power handling, 15W each port as combiner • Low insertion loss, 0.3 dB typ. • Low unbalance, 0.5 dB / 5° typ. • Good isolation, 18 dB typ. Applications • VHF/UHF • Communication systems • Receivers & transmitters • Instrumentation • CATV
|
