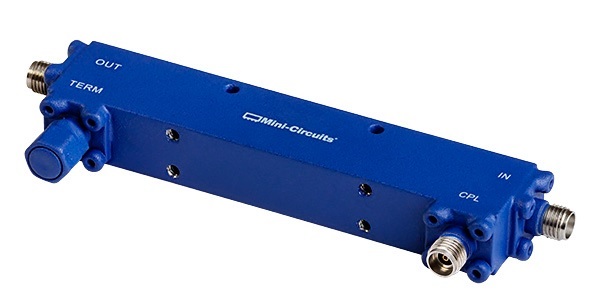

ZCDC10-K5R44W+ Directional Coupler 50Ω 10dB Up to 15W 0.5 to 40 GHz • Wideband, 0.5 to 40 GHz • Excellent Coupling Flatness, ±0.9 dB typ. • Power Handling up to 15W • Good directivity, 22 dB typ. up to 40 GHz • Good return loss, 15 dB typ. up to 40 GHz • DC current pass through input to output Applications • 5G • Mobile • Fixed satellite • Lab use
ZDDC20-K0144+ Dual-Directional Coupler 50Ω 20dB Up to 20W 1 to 40 GHz • Wideband, 1 to 40 GHz • Excellent Coupling Flatness, ±0.6 dB typ. • Power Handling up to 20W • Excellent directivity, 20 dB typ. at 20 GHz • Excellent return loss, 21 dB typ. up to 40 GHz • DC current pass through input to output Applications • 5G • Mobile • Fixed satellite • Lab use
ZC2PD-E40653+ Power Splitter/Combiner 2 Way-0 50Ω 40000 to 65000 MHz • Ultra wideband, 40 to 65 GHz • Low insertion loss, 1.2 dB typ. • High Isolation, 24 dB typ. • 12W power handling • Low amplitude unbalance, 0.06 dB typ. • Excellent VSWR, 1.18:1 typ. Applications • 5G • Fixed satellite • Space research • Mobile
ZC2PD-V24443+ Power Splitter/Combiner 2 Way-0∘50Ω 24000 to 44000 MHz • Ultra wideband, 24 to 44 GHz • Low insertion loss, 0.9 dB typ. • High Isolation, 30 dB typ. • 16W power handling • Low amplitude unbalance, 0.04 dB typ. • Excellent VSWR, 1.16:1 typ. Applications • 5G • Fixed satellite • Space research • Mobile
ZC2PD-V2654+ Power Splitter/Combiner 2 Way-0° 50Ω 26000 to 50000 MHz • Ultra wideband, 26 to 50 GHz • Low insertion loss, 1.0 dB typ. • High Isolation, 26 dB typ. • 16W power handling • Low amplitude unbalance, 0.06 dB typ. • Excellent VSWR, 1.18:1 typ. Applications • 5G • Fixed satellite • Space research • Mobile
RC-2SPDT-40 RF SPDT Switch Matrix 50Ω DC to 40 GHz • Dual independent mechanical SPDT switches • Excellent performance to 40 GHz • High reliability, 2 million switch cycles • 5W power rating (cold switching) Typical Applications • 5G node / device testing • Automated test equipment • Fail-safe / redundancy switching
|
