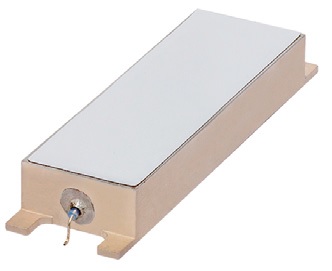

MBPA-693+ Bandpass Filter 50Ω 673 to 713 MHz • Low passband IL , 2.2 dB typ. • Fast Rejection roll-off • Excellent rejection floor, 80 dB typ. • Wider stopband performance up to 5GHz • Good Return loss, 18 dB typ. • Rugged Metal package • Gross Leak Sealed Applications • Radar • Defence systems • Transmitters and receivers • Test and measurement • GPS • Wireless LAN
MBPA-A693+ Bandpass Filter 50Ω 663 to 723 MHz • Low passband IL , 1.5 dB typ. • Fast Rejection roll-off • Excellent rejection floor, 80 dB typ. • Wider stopband performance up to 5GHz • Good Return loss, 18 dB typ. • Rugged Metal package • Gross Leak Sealed Applications • Radar • Defence systems • Transmitters and receivers • Test and measurement • GPS • Wireless LAN
BFHK-2582+ Bandpass Filter 50Ω 24.25 to 27.50 GHz • 5G n258 bandpass filter • Low Insertion Loss – Mid band 2.0dB typical • Pick and place standard case style • Small size 4.5mm x 3.2mm • High quality distributed filter topology • Temperature stable • Hermetically sealed • LTCC construction Applications • 5G Telecommunications

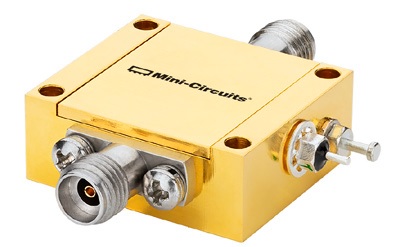

ZV47-K44+ Power Detector 50Ω -30 to +15 dBm 500 to 43500 MHz • Ultra-wideband, 500 MHz to 43.5 GHz • Wide dynamic range of input power, -30 to +15 dBm • Single positive supply voltage, +5V • Low supply current: 3mA at +5V typical • Fast output rise time: 4ns typical Applications • Point-to-Point Microwave Links • Instrumentation and Measurement Equipment • Military Radios • LTE, WiFi, WiMAX Wireless Networks • RMS Power Measurement • Receive and Transmit Gain Control • RF PA Transmit Power Control
TRPS2-232-75+ Power Splitter/Combiner 2 Way-0° 75Ω 5 to 2300 MHz • Wideband, 5 to 2300 MHz • Good power handling, 0.5W as a splitter • Low insertion loss, 2.0 dB • Low unbalance, 0.2 dB, 1.2˚ • Supports DOCSIS 4.0 requirements • Excellent solderability • Low cost Applications • CATV • Cellular • PCN • GPS • Communications systems
SCG-3-272+ Power Splitter/Combiner 3 Way-0° 50Ω 1800 to 2700 MHz • Isolation resistor, external 150 ohms • Low insertion loss, 1.1 dB typ. • Excellent amplitude unbalance, 0.4 dB typ. • Excellent phase unbalance, 5 deg. typ. • High isolation, 16 dB typ. • ESD non-sensitive • Temperature stable LTCC technology • Wrap around terminations for excellent solderability • Low cost Applications • ISM • WLAN
|
