PHA-102+ Monolithic Amplifier 50Ω 50 MHz to 6 GHz • Ultra Wideband, 0.05 - 6GHz • Excellent gain flatness 14.3±0.3dB from 0.05-3GHz • High Linearity, +26.4dBm P1dB & +50dBm OIP3 at 0.9GHz • May be used as a replacement for AH102a,b Typical Applications • WiFi • WLAN • LTE • WiMAX • S-band Radar

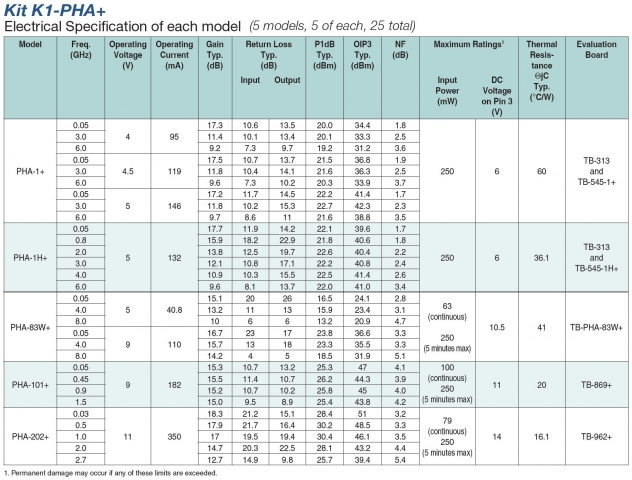

K1-PHA+ AMPLIFIERS 30 MHz to 8 GHz • Up to 30 dBm output power • Variety of gains: From 10 dB to 18 dB typ. • Variety of packages: SOT-89, MCLP 5 x 6 mm • Ruggedized design • Low thermal resistance
MBT-283-D+ Bias-Tee Die 50Ω Wideband, 1.5 to 20 GHz • Extremely Wideband, 1.5 to 20 GHz, Usable up to 28 GHz • Very low insertion loss, 0.7 dB typ. • Good return loss, 19 dB typ. • Excellent Isolation, 48 dB typ. Typical Applications • Biasing Amplifiers • Biasing laser diodes • Biasing of active antennas
ZUDC10-5R23-S+ Directional Coupler 50Ω 10dB Up to 50W 0.5 to 2 GHz • Wideband, 0.5 to 2 GHz • Power Handling up to 50W • Wide frequency range, 0.5 to 2 GHz • Good coupling flatness, ±0.5 dB typ. • Excellent directivity, 26 dB typ. up to 2 GHz • Excellent return loss, 34 dB typ. up to 2 GHz • DC current pass through input to output Applications • Mobile • Fixed satellite • Lab use • GPS • Radar • Radio
|
