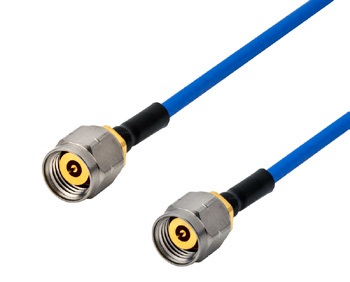

FL86-12VM+ Coaxial Cable 50Ω 12 inch DC to 50 GHz • Flexible • Wideband frequency coverage, DC to 50 GHz • Low Loss, 1.96 dB typ. at 50 GHz • Excellent Return Loss, 21 dB typ. at 50 GHz • 6mm bend radius for tight installations, 6mm static bend, 20 mm dynamic bend • Insulated outer jacket standard • Connector interface, meets MIL-STD-348 • Ideal for interconnect of assembled systems
CBP-1400BD+ Bandpass Filter 50Ω 1320 to 1480 MHz • Low insertion loss with excellent power handling • Passbands up to 6 GHz • Fractional bandwidth from 3 to 25% • Low profile designs with min. height of 0.120” • Excellent temperature stability • Rugged construction to handle demanding environmental conditions • High rejection • Minimal Insertion loss variation over operating temperature
NCR2-123-3+ RF Transformer 50Ω 4700 to 12000 MHz • Wideband, 4700 to 12000 MHz • Miniature size, 0.079”x0.098”x0.035” • LTCC construction • Low cost • Aqueous washable
|
