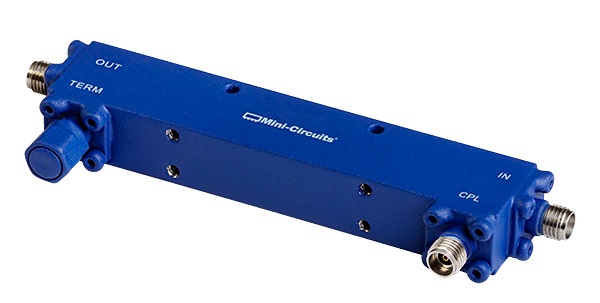

ZCDC10-E6653+ Directional Coupler 50Ω 10dB Up to 11W 6 to 65 GHz • Ultra-wideband, 6 to 65 GHz • Excellent Coupling Flatness, ±0.5 dB typ. • Power Handling up to 11W • Good directivity, 15 dB typ. up to 65 GHz • Excellent Input/Output return loss, 18 dB typ. up to 65 GHz • DC current pass through input to output

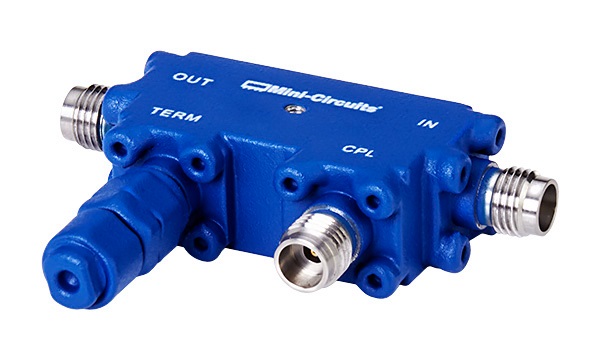

ZCDC13-E1653+ Directional Coupler 50Ω 13dB Up to 11W 1 to 65 GHz • Ultra Wideband, 1 to 65 GHz • Excellent Coupling Flatness, ±0.9 dB typ. • Power Handling up to 11W • Good directivity, 17 dB typ. up to 65 GHz • Excellent return loss, 16 dB typ. up to 50 GHz • DC current pass through input to output
DCW-11-722+ Directional Coupler 50Ω 11 dB Coupling 2400 to 7200 MHz • Wideband, 2400-7200 MHz • Excellent return loss for input/output ports ideal for signal-tap • Ultra small size, 0603 (1.6 x 0.8 mm) • Temperature stable • LTCC construction
|
